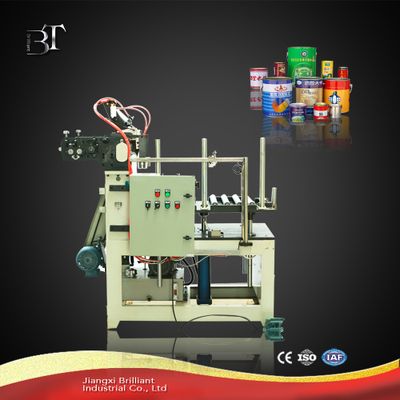

Automatic round tin can forming machine

Min. Order: 1
Payment: T/T
Minimum Order: 1set
Delivery: 30Days
Origin: China
Packing: Plywood Package
Inspection: ISO9001
Samples: Not Avaliable
Sample Price: $1.00
Remarks: High quality automatic can forming machine
Contact Supplier

Favorite

Inquiry Basket

Product Attributes
Company Profile
Logistics and other information
    Product Details

    1. Function

    Automatic rolling machine is necessary equipment in making food tin cans and chemical tin cans.It could work with semiautomatic seam welder.
    Principle of this machine:The vacuum sucker feed the tinplate to be pre-rolling position,then the first two rollers feed the tinplate to the other three rollers position,then finish rolling.
    This machine structure is simple and reasonable,easy operation.It keep the same quantity of rolled can body automatically,so could work with seam welder well and use less worker.

    2.Major technical parameters

    Rolling diameter(mm)80-290

    Can body height(mm) 85-500

    Tinplate thickness(mm)0.2-0.4

    Rolling motor power(KW)0.75

    Raising motor power (KW)1.5

    Voltage  (V)380

    Output capacity   (pcs/min) 10-50

    Size (mm)2025×890×1550
