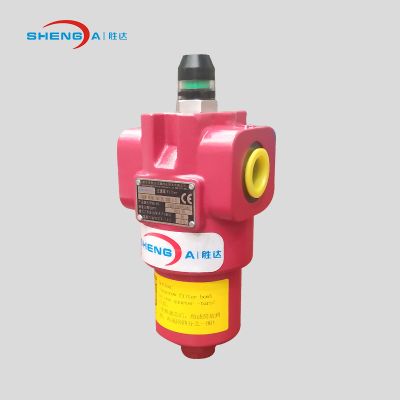

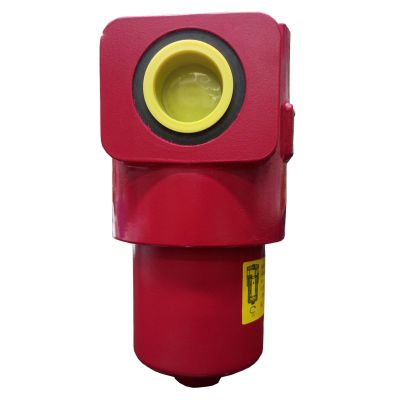

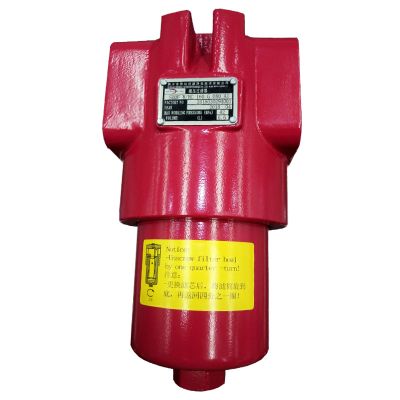

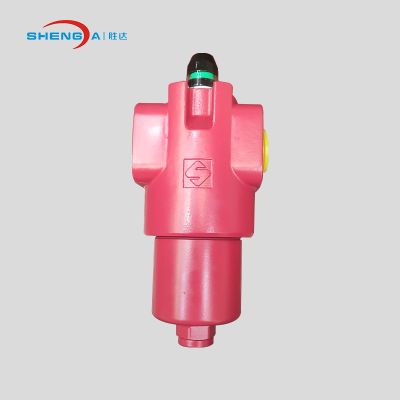

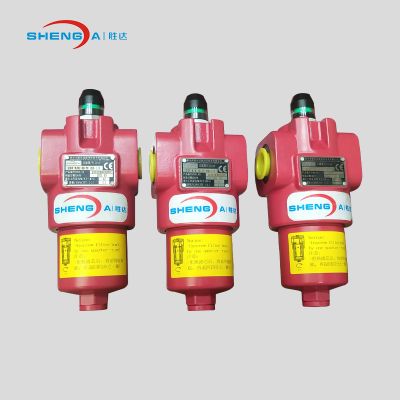

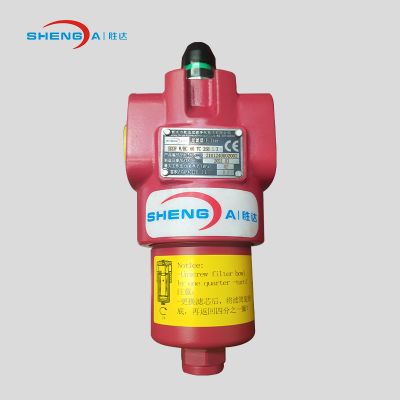

High Pressure Oil Filter housing

High Pressure Oil Filter(SDDF series)

Product Description

The filter housings are designed in accordance with international regulations. They consist of a filter head with a screw-in filter bowl.

*Standard equipment

connection for a clogging indicator in filter head

drain screw with pressure relief ( size DF 330 and above)

1 or 2-piece filter bowl available as an option for DF/DFF 280-660 and DF 2000

2-piece filter bowl for size DF/DFF 990 and above

Product Feature

Up to 2000 L/min, up tp 420 bar

Inline filter with or without reversible oil flow

With bypass valve


Product Specification / Models

Nominal pressure: 420 bar

Temperature range: -30 ~ +100 centigrade

Material of filter head: EN-GJS 400-15

Material of filter bowl: Steel

Type of clogging indicator: VD ( differential pressure indication up to 420 bar operating pressure)

Pressure setting of clogging indicator: 5 bar (others on request)

Cracking pressure of bypass: 6 bar( others on request)

Application / Models

Hydraulic oil; Lubrication oils; Compressor oils; Biodegradable operating fluids; Non-flam operating fluids; Operating fluids with high water content on request

Other Information

Filter housing must be earthed;

When using electrical clogging indicators, the electrical power supply to the system must be switched off before removing the clogging indicator connector
