Product Description

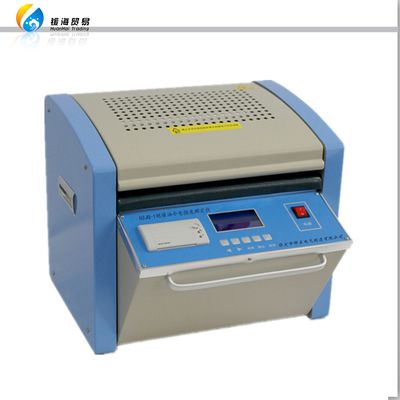

Transformer Oil Test Meter/Transformer Oil Breakdown Voltage Tester performance:
1.withstand voltage test in the range of 0 ~ 80KV.
2.Large-screen LCD.
3.Simple operation
4.Store 100 experimental results, and display the currentenvironment temperature and humidity.
5.The whole process easy to control.
6.With overvoltage, overcurrent, limiting protection, in order to ensure the safety of operators.
7.With a temperature measurement display function and system clock display.
8.Standard RS232 interface.
Transformer Oil Test Meter/Transformer Oil Breakdown Voltage Tester parameter:
Output Voltage | 0~80KV (100KV need special design) |
Voltage Distortion Rate | <3% |
Voltage Raising Speed | 0.5~5 KV/S (adjustable) |
Standing Time | 15min(adjustable) |
Boosting Interval | 5 min(adjustable) |
Boosting Frequency | 1~6 time(s) |
Booster Capacity | 1.5KVA |
Measuring Accuracy | ±3% |
Supply Voltage | AC100V~220V 50Hz±1 Hz |
Power | 200W |
Applicable Temperature | -0u2103~45u2103 |
Applicable Humidity | ≤75%RH |
Overall Dimension | 465 mm *385 mm *425mm |
