RZL LUBRICANT oil PURIFIER SERIES

Product Description

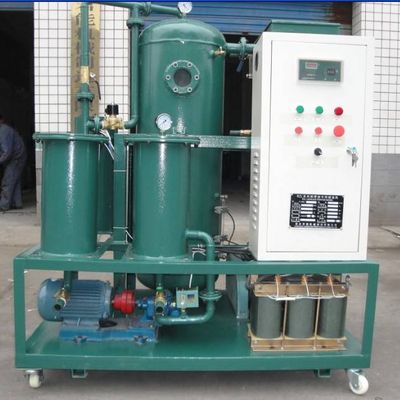

RZL series oil purifiers are suitable especially for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil this kind of oil purifier can purify contaminated lubrication in which much water, gas and many impurities exist. RZL series can rapidly remove water, gas, particular matters and impurities from lubrication oil and improve properties of lubricating oil so as to greatly extend lifetime of machinery which has lubrication system.
It is especially suitable for industries including petroleum, chemical, mine, metallurgy, power, traffic, mechanical manufacture and railway for the recovery and purification of various lubricating oil such as hydraulic oil, mechanical oil, cooling oil, refrigerating oil, gear oil, gasoline engine oil, diesel oil and heat treatment oil.

Product Feature

1) Perfect capacity of removing impurities. The special filters made by JunNeng are made of special materials which can effectively and rapidly eliminate various impurities, water and gas.
2) Automatic reverses flushing ability, which automatically cleans the mass impurities withheld by the purifier.
3) Advanced medium heating absorption and condensation system
4) Pressure protection, auto heating temperature control, and device of auto separation of condensate water, easy to handle, safe and reliable.
5) Top quality purification material, large capacity of handling impurity, corrosion-proof, high temperature resistant, good mechanical strength, high precision of impurity removal and long lifetime.
6) Unique water/gas removal system, which adopts stereo-evaporation technology, multi-oil water separation technology, enabling fast removal of water, gas and impurity in oil.
7) Imported parts are used for all electric system, which ensures operation of the equipment with high performance
8) Lowly noisy oil pump is specially made..

Product Specification / Models

Name Unit RZL-20 RZL-30 RZL-50 RZL-70 RZL-100 RZL-150 RZL-200
Flow L/min 20 30 50 70 100 150 200
Vacuum Range Mpa -0.06~ -0.095
Temperature Range u2103 60~80
Oil pump pressure Mpa ≤0.4
Power Supply 50HZ 380V
Total Power kw 25 28 37 47 56 68 78
Cleanliness NAS ≤NAS 6 (NAS1638)
Water content in oil ppm ≤100
Mechanical impurity % no
Working Noise db(A) 65~85
inlet (outlet) diameter mm 25 25 32 32 42 50 60
dimension mm L 1980 2005 2250 2300 2450 2800 3200
W 870 870 970 1050 1500 1400 1500
H 1600 1680 1880 2000 2100 2300 2400

Application / Models

LUBRICANT oil PURIFIER to remove the gas,water,impurities
