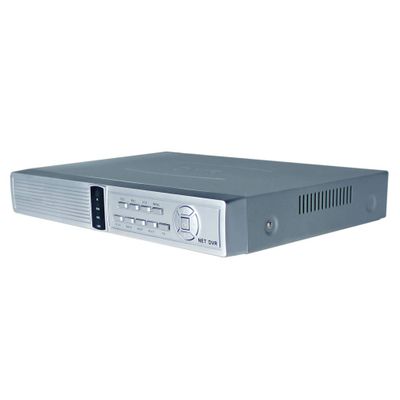

D1 CCTV Video Recorder 8CH DVR with 1CH audio

Image Compression H.264

Audio Compression ADPCM



Operation System Embedded Linux,with IR remote controller. Support remote view with Mobile Phones (based on Windows Mobile and Symbian S60, iPhone, iPad,Blackberry &Android operation system)

Resolution Display(D1):704*576(PAL),704*480(NTSC)

Record(CIF):352*288(PAL),352*240(NTSC)

Rate 200fps(PAL),240fps(NTSC)

Operation Interface Support USB mouse,Panel button,and remote controller

Hard Disk(HD) Support 1 SATA hard disk up to 2000GB capacity

VGA Output YES

Record mode Manual,timing,alarm,motion detection

Record search Time,event,channel,diary search

Record save Local hard disk,network

Backup mode Network,USB,SATA hard disk record backup

Video input 8CH BNC

Video output 1CH BNC,1CH VGA output

Audio input 1CH RCA

Audio output 1CH RCA

Alarm input No

Alarm output No

Image control 6 grade adjustable

Motion detection Yes

Local playback 1CH--8CH playback simultaneously

Network RJ45,10M/100M self adaptive Ethernet port; Support HTTP,SMTP, FTP,DDNS,PPOE network protocol

USB interface 2 USB2.0 high speed interface

Support languages 15 kinds languages: English,Simplified Chinese,Traditional Chinese(Big5), Portuguese,Spanish,Turkish,Hungarian,French,German,Polish,Persian, Italian, Russian,Japanese,Thai

Model NO.:JM-8608S

Features:

1. Video compression format:H.264 pure hard compression

2. Operating system: Embedded Linux, the stability is very good.

3. Preview in D1 resolution,and support the mobile phone surveillance

4. Support 8CH CIF real-time record and network transmit,1CH or 8CH CIF or 2CH D1 playback

5. Support BNC and VGA video output

6. Support USB mouse,pressing OSD panel button and remote controller operation,support SATA hard disk

7. High quality RIVC,support high quality image

8. Communication port:1*10M/100M website corner that support IE browser, 1* RS 485 port that has alarm host inside for PTZ

9. USB port: 2pcs, support USB interface, USB mouse and U disc copy and update

10.Our product has high cost performance via the continuous optimization of system architecture and excavation of code core performance

11.Built-in DDNS (Dynamic Domain Name System),remote login is more convenient

12.With concise design,elegant appearance and great stability
