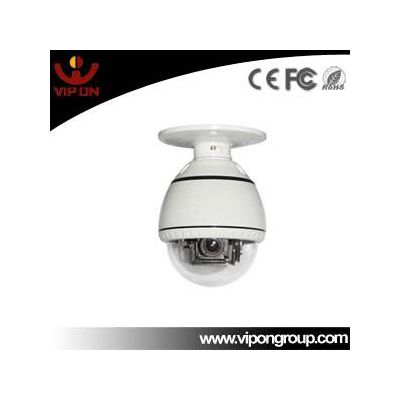

2.0 Megapixel waterproof Dome IP Camera

Hardware

Sensor:1/4" Progressive Scan CMOS OV2643

Effective Pixels:1600(H)×1200(V)

Min.Illumination:0.3lux

Day/Night:N/A

IR LED:N/A

Max S/N Ratio:39dB

Electronic Shutter:Rolling Shutter



Interfaces

Optical lens

Interface:Board Mount M12.5

Lens:Fixed Iris, Manual Focus

Focal Length:Vari-Focal, 3.7-14.8 mm / F1.6

H View Angle:62°-15.4°



Audio video encoding

Video Compression:H.264 Main Profile; MJPEG/JPEG Baseline

Resolution

Main Stream:UXGA (1600*1200) 15fps, HD 720P (1280*720) 25fps

Sub Stream:(640*360) / (160*112) 25fps

Video Bitrate:32Kbps~4Mbps,Supports CBR/VBR

Title OSD:Supports channel name, date, and video stream information overlay;OSD location is adjustable

Privacy Mask:4 configurable regions

Image Orientation:image flip and mirror

Auto Image Control Functions:Auto Exposure Control (AEC); Auto White Balance (AWB); Auto Band Filter (ABF);Auto Black Level Calibration (ABLC)

Image Controls:Color saturation, hue, gamma, sharpness (edge enhancement), lens correction, defective pixel canceling, and noise canceling



Data transmission and storage

Data storage:Video and Image

Recording:Recording set up to record by motion trigger,alarm trigger, manual, or schedule

Alarm Output:E-mail, Explorer, Software

Network protocol:TCP/IP , UDP , RTP , RTSP , RTCP , HTTP , DNS , DDNS , DHCP , FTP , NTP , PPPOE , SMTP , UPNP

ONVIF protocols:Support 2.0 version

Remote View

PC:IE 6.0~8.0 , Firefox , Chrome ;max 10 users

Mobile Phone:iPhone, ipad, Android



General Parameters

Environmental Casing:Ceiling Bracket include, Indoor Use

Installation:Ceiling Mount Screws Included

Operating Temperature: -20 °C ~ 50 °C (-4 °F ~ 122 °F) for DC 12V

Operating Humidity:0% -85% RH

Power:DC12V 2A

Power Consumption:9 W(MAX)

Dimension:182mm (L) * 128mm(W) * 128mm(H)

Weight:1.22 Kg (2.68bl)

Package Dimension:200mm*200mm*200mm

Package Weight:1.5 Kg (3.3 bl)

Approvals:CE FCC RoHS

- H.264 compression format, MJPEG/JPEG Baseline

- 2.0 Megapixel Resolution,Support 1600*1200 & 720P(1280*720)

- Dual Stream, resolution, bit rate adjustable

- 3.7-14.8 mm Mega Pixel Vari-Focal Lens included, Auto Focus

- Support Pan/Tilt control (Pan:360u00b0& Tilt:80u00b0) ,15u00b0/s Cruise

- Freely control Pan/Tilt angle by software(PC or Smart Phone)

- Motion detection recording , alert with snapshots via email

- Build-in Privacy Mask , image snapshot , Title OSD , Alarm recordin , DDNS

- Onvif Compliant, Support NVR from Milestone/Axxon/NUUO/geovision/synology/Hikvision/Dahua/Kodak

- Support IE6.0~8.0, Firefox, Google chrome browser

- Support iPhone/iPad/Android Smart Phone

- Free CMS Software, paid Software for optional

* Paid Software function: Face Detection, Missing/Abandoned Object Detection etc.

* Support P2P and PnP function for optional
