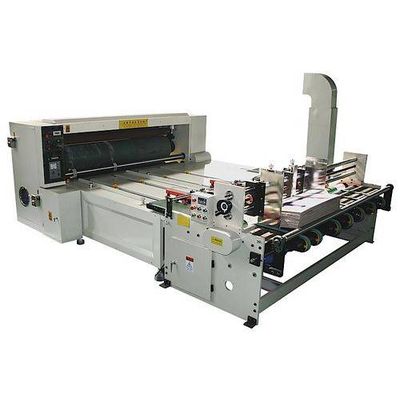

Packaging Automatic paper-feeding rotary die-cutting machine

Outline:

Automatic paper-feeding rotary die-cutting machine is a new type equipment production which solves the question that the original chain paper-feeding die-cutting machine can't process mass continuous production, the continuous paper-feeding guarantee cardboard walk is not only improve work efficiency, but also greatly decreased labor intensity, and reduce defective products.

1.Phase adjustment

1）、the planetary gear structure.

2)、the figures show that the phase-type instructions, to make operation more convenient, intuitive and accurate.

3）、cutting the use of electric digital phase adjustment of 360 degrees (run, stop can be adjusted.) Modulation accuracy of 0.10 mm.

2.Cushion roll repair agency

Electric grinding bodies, can be repeated 2-3 times.

3.Cutting roller pneumatic lifting mechanism

Aerodynamic lift and air drop, easy to die, to extend pad life.

4.Differential regulatory agencies

1）.To ensure the cutting quality, the cushion roll gear adjusting mechanism installed outside the die roll and pads to ensure the roll speed are equal.

2）．Mechanical rotating rollers move around 30 mm and with a radial differential system that allows the average distribution of roller wear can greatly improve the life of the cot.

4. Balancing adjustment for increased stability.

5. Electronic automatically records or set production quantity.

The main technique parameters

Model (Unit: mm)1200*24001400*26001600*28001600*3500

Breadth2400260028003500

Maximum feeding size1200*20001400*23001600*26001600*3000

Maximum cutting size1200*20001400*22501600*25001600*3000

Minmum feeding size350*350400*400400*400400*400

Maximum output speed70sheet/min 60sheet/min 60sheet/min 50sheet/min

Template screw hole clearance100*100100*100100*100100*100

main motor5.5KW7.5KW7.5KW11KW
