Product Description

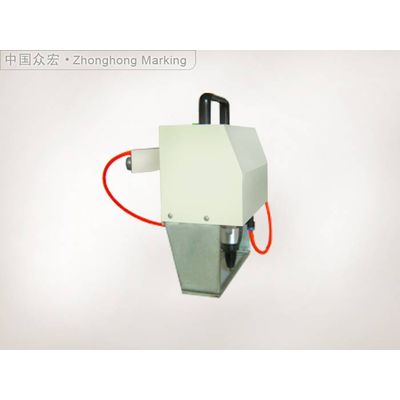

a mini handheld portable pneumatic marking machine, 23 engineers of my company after 8 years of combat experience with German technology, independent research and development of a compact, the world's most powerful pocket type universal pneumatic marking machine. This machine with its small stature talent showing itself, and known as the marking machine field Elf.
In terms of software the machine adopts embedded, independent operation interface, handwriting input, large screen. This machine integrates the host computer and lower computer together, the memory space is large, you can store content, like swimming in the ocean. The print is rich in content, a variety of fonts as you choose, graphics, logo, serial number, bar code, VIN code, two-dimensional code and other code patterns for you to choose from, the Elf is suitable for various industries of metal non metal marking, marking in flat, round face, irregular surface, can run freely.
Product Feature
Product main features:
Automatic programming: marking is rich in content, can play in English, Chinese characters, numbers, graphics, logo etc.
Printing: printing effect is colorless and dent (dot, line 2 marking mode) permanent marker.
The needle system: automatic needle system, can quickly and accurately the marking content moved to the corresponding position.
Fonts: multiple fonts available, and you can edit the new font, with scanning camera.
Analog display: without labeling, direct observation of marked effect on screen, what you see is what you get.
Storage function: automatic collating sequence, marking time, quantity, content, automatic storage for statistics.
Setting: automatic collating sequence, marking time, quantity and content are automatically stored for statistical.
The stability of the system: the system is stable, can work continuously for 24 hours.
Marking requirements: special alloy print needle, mark clear, consistent with the Ministry of Public Security announced vehicle marking requirements.
Small size: marking machine specialized controller, light weight, small volume, easy to carry out.
Magnet: using magnet adsorption methods of marking, easy to use.
A variety of font: font library with multiple fonts available, you can edit the VIN code and other new font.
Product Specification / Models
The main performance parameters of products:
Operating systemWindows CE
Print size100 x 30mm, 120 x 30mm, 160 x 30mm, 180 x 30mm
Minimum character1 u00d7 1mm (word size can be changed by software arbitrary)
Print the contentsChinese, English, numbers, graphics, serial number, VIN code etc.
Printing speed3-12 characters per second
Print depth0.01-2mm (according to the material constant)
Print modemanual input, automatic printing
Printingcolorless dent
The steel hardnessHRC95
Print materialall kinds of metal (HRC65 u00b0 hardness), all kinds of hard materials
Editorsoftware provides self editor, handwriting input, the plane circular, fan-shaped and circular distribution
Graphics conversionsoftware provides AutoCAD, CorelDRAW, CAXA graphics file conversion mode
Accuracythe self-lubricating type precision linear slide rail, work for five consecutive years' working error less than 0.01mm
Dimensions180 x 150 x 80mm (length, width, height)
Weight1~3.6Kg
Size specifications, can be customized.
