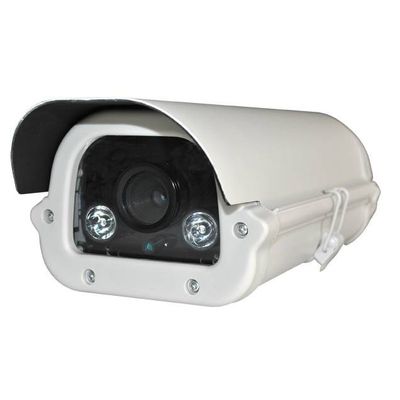

ONVIF Array 50M IR Nightvision Weatherproof Outdoor ip cameras POE

Specifications:

Model 615HD 615HD-S 615WDR 615WDR-S 616HD 616HD-S

Main chipset HISILION HI3507

Operation system Embedded Linux

Video Compression H.264 main profile level 3

Audio Compression G.726/G.711

Image Sensor 1/3" 2.0 megapixel progressive scan CMOS 1/2.7" 2.0 megapixel progressive scan WDR CMOS 1/4" 2.0 megapixel progressive scan CMOS

Video performance Brightness,contrast,satration can be adjusted

CMOS performance Automatic white balance(AWB),automatic gain control(AGC),automatic backlight compensation(ABLC)

WDR No WDR Support No

Mini.Illumination 1 Lux 0.01 Lux 1 Lux

Video resolution 1280x720,640x480,320x240

Video frame rate Main tream:1~30fps, Sub Stream:1~30fps, Video compression code rate: 32Kbits/S~4Mbits/S adjustable

Audio input 1ch line/Mic Input No 1ch line/Mic Input No 1ch line/Mic Input No

Audio output 1ch line No 1ch line No 1ch line No

Alarm I/O 1ch alarm I/O No 1ch alarm I/O NO 1ch alarm I/O No

Motion detection 4 respective regions

Control interface 1CH RS485 No 1CH RS485 No 1CH RS485 No

SD card backup local,video and snapshot ,up to 32G No local,video and snapshot ,up to 64G No local,video and snapshot ,up to 32G No

network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP and so on

network interface 10Base-T/100Base-TX Ethernet interface;

Input power DC 12V 2A

Consumption 6W

Working temperature -10 ~ +55

Size(Lu00d7Wu00d7H) 290mm*120mm*110mm

Weight 0.95kg

Features:



Auto Array illumination for night vision (up to 40-50 meters)

Weatherproof structure best for outdoor installation

Dual encoding streams supported

Max 32GB Hot-swappable SD card for local storage

Built-in web server, MSS & CMS

Motion detection alert with snapshots via email

Manually zoom function(Electronic map)to amplify any part of the picture

Automatically adjust the picture size to fit different screen resolution
