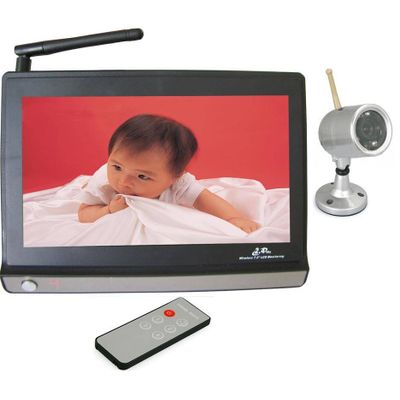

CCTV Wireless Baby Monitor

CCTV Baby Monitor CW-WR860+702



Receiver:

Aspect Ration: 7 inch(16: 9)

Display Element: Color TFT LCD

Video System: PAL/NTSC

Active Area: 154.08(mm)*86.58(mm)

Resolution: 480(H)*RGB*234(V)

Receiver Channel: 4 Channels

Brightness: 200CD/m2

Contrast Ratio: 300: 1

dB Level: -90dB

Composite Video (AV): One-way AV input

OSD Language: English

Input Voltage: DC 12V

Max Power Consumption: ≤ 8W



Camera:

Image Sensor: 1/3" OmnVision CMOS

Effective pixels: (PAL)628(H) x 582(V) (NTSC)510(H) x 492(V)

Horizontal Definition: 380 TV line

Minimum Illumination: 1.0 Lux /F1.2(Infrared LED ON)

Night-vision distance: 8m

Dimension: 48mm*48mm*25mm

Weight: 70g



Feature:

1. Infra-red LEDs for night-time vision, Effective night vision range: 8 or 15m

2. 380TV lines clear picture display, Environmentally Friendly Design. Baby Monitor KIT.

3. 4-channel available to Channel scan and channel skip for multi-camera usage

4. Built-in microphone for audio monitoring 7 inch TFT LCD 2.4GHz 4-Channels Wireless AV Color Monitor. Receiver inside easy installation

5. PAL/NTSC System.

6. Remote Control with Full Functions. On screen display (OSD) menu.
