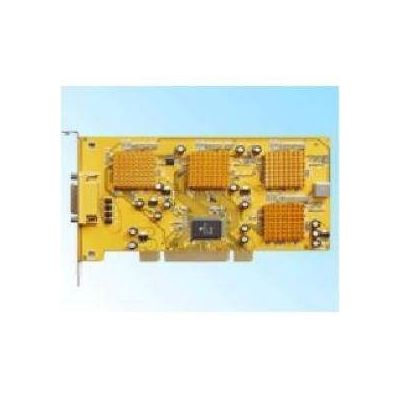

4- anti-lightning, soft compression surveillance camera capture card SKY-2384

PCI2.2 norms in line with PCI2.2 specification, support PNP

BNC video input interface, input line

Video input impedance 75 Europe

Board power consumption 6W, ultra-low power plus heat sink design, board structure, compact, system stability

Board size 187 (L) u00d7 104 (W) u00d7 19 (H) mm

Naked Card Weight 210g

Ambient temperature -10 u00e2 ~ +50 u00e2

System Configuration

Support OS Windows 2000/XP/NT

Proposed configuration P4/2.4G, Memory: DDR256M, graphics cards: ATI 64M or more (Note: no support for VIA chipset motherboards)

A single PC system supports large ones support 24 channel real-time

Motherboard: Asus P4P800-X / ASUS P5P800-VM / Gigabyte 8I865G775-G-RH / Gigabyte 8I945P-G / ASUS P5PL2 / walks DVR P5-865G/AL

Graphics: ATI9000 / ATI9550 / ATIX300 / ATI X550 / ATI X700 / ATIX750 / Integrated Intel GMA950

CPU: Celeron Series / Pentium D series / Intel Core Series

Memory: 256M DDR/512M DDR 256M DDR2 / 512M DDR2 / 1G DDR2

Power: the Great Wall, more than 350W HUNTKEY

Product Model: SKY-2384

Using 10 bit CONEXANT 23881 chip,

Unique four-line 3D dress filter automatically to eliminate noise,

Image quality than PHILIPS 7130 chipset to monitor a 40% increase.

Design of a special anti-lightning strike.

Basic parameters

The total resources of a single card format PAL: 100 frames / sec

NTSC standard: 120 frames / sec

H.264 compression

Video Input 4-input

Image quality 10 Bit

Image resolution display resolution: 640 u00d7 480,352 u00d7 288,320 u00d7 240

Video Resolution: 640 u00d7 480,352 u00d7 288,320 u00d7 240

The amount of data statistics 100-150M / h / Rd

many kinds of surveillance cameras

The ability to easily add hardware devices: video capture equipment, police equipment, matrix, fast ball, access control and so on.

The ability to easily add features: Modular design allows an increase in local feature does not affect the stability of the whole system running.
