penicillin bottle washing machine for filling production line

$1000.00~$3000.00
Min.Order 1   Others
Min. Order: 1
Payments: L/C, T/T, Western Union
Delivery: 25DAYS
Origin: CHINA
Packing: WOODEN CASE
Inspection: -
Samples: Charge
Contact Supplier

Favorite

Inquiry Basket

Product Attributes
Company Profile
Logistics and other information
    Product Details

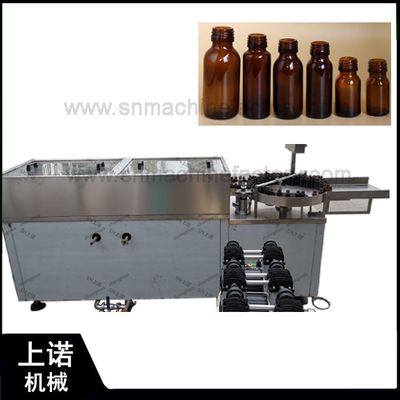

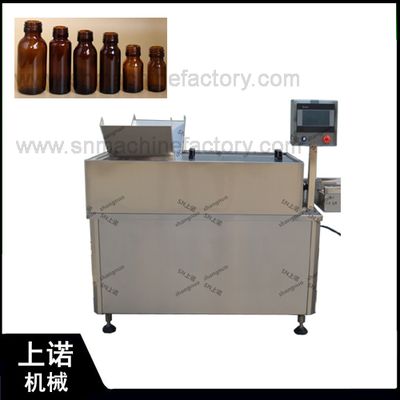

    This machine is mainly used for clean the inside and outside of various material round bottle with filling range of 5-1000ml by “two water and one gas” (water, ionized water, oil free compressed air) alternately washing. So that make sure the bottles meets requirements of production process, and it has function of initial drying the bottles. It’s can be connected to filling production line, also can be used alone.

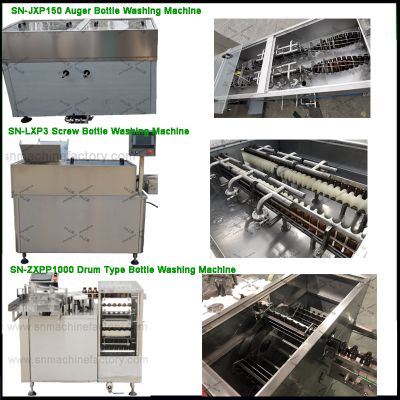

    Machine name:

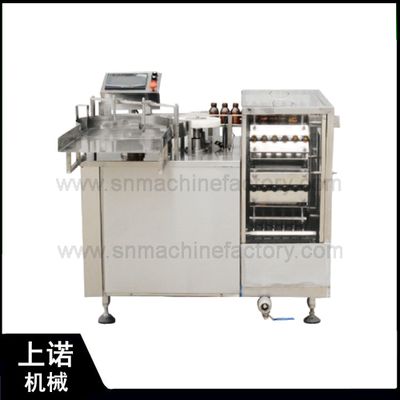

    SN-ZXPP1000 Drum Type Bottle Washing Machine

    SN-JXP150 Auger Bottle Washing Machine

    SN-LXP3 Screw Bottle Washing Machine

    Technical parameter:

    Model

    SN-ZXP1000 Drum Type Bottle Washing Machine

    SN-JXP150 Auger Bottle Washing Machine(can add ultrasonic cavitation)

    SN-LXP30 Screw Bottle Washing Machine

    Applicable bottle size

    30-1000ml

    Bottle height 30-110mm,diameter 20-80mm

    5-30ml

    Washing speed

    40-120 bottle/min

    80-160 bottle/min

    Single screw:50-150 bottle/min;double screw 80-250 bottle/min

    Air supply

    15m3/h,0.6-0.8Mpa

    0.6-0.8Mpa

    0.6-0.8Mpa

    Power supply

    220/380V,50/60Hz

    Power

    1.5KW

    3.5KW

    2KW

    Circulating water consumption

    0.5-1m3/h

    Net weight

    500kg

    500kg

    500kg

    Overall dimension

    L1500*W850*H1300mm

    L2500*W1200*H1200mm

    L1800*W1050*H1450mm
