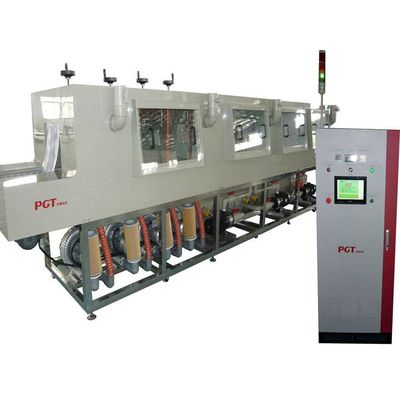

washing & drying machine

Technical parameters:

1.Input:3 phase 380Vac 50/60Hz

2.Air supply:0.6MPa;

3.Water supply:2m3/h;

4.Transfer speed:0.01~8m/s(adjustable)

5.Height of conveyer belt: 720mm

6.Inside dimension: L*300*320mm(Max battery:W=260mm,H=300mm)

7.Water temperature:1~55 degree Celsius (adjustable)

8.Drying temperature: room temperature ~45 degree Celsius

9.Efficiency:1000 pcs/8 hours(12V100AH battery)or 4000 pcs/8 hours(12V20AH battery).

1.Adoption of The human-computer interaction interface, Automatic flight conveyor;

2.The machine is divided into five working station:Washing with the brush,Washing with water containing soda, Washing with the hot water I, Washing with the hot water II,Drying

3.Wash station:Circulating water system, Low water level warning and mend water automatically;

4.Hot water station:Setting temperature freely, automatic temperature controller, With over-temperature alarm system;

5.Drying station:High-speed rotating turbo-fan strengthens hot air circulation. Get quick drying and soft fabric;

6.Keep suction opening, Drain the water spray and strong wind in the passageway of machine.

PGT-WD6600

PGT-WD6000

PGT-WD5000

Application:

apply to washing and drying for small capacity & medium capacity & big capacity batteries
