Product Description
This eight-station rotary die cutting machine is widely used in manufacturing
1.mobile phones,laptops,PDA,digital cameras and audio electronic products as well whose parts such as front and rear shell,windows,display,microphone,receiver,keyboard and battery.
2.Die cutting labels
3.Also applicated in health care,package printing,automotives electronics and daily necessities.
4.Very good at die cutting multilayer composite products, once-molded with high efficiency.
Product Feature
1 .Hoaco self-developed control system is more optimized, stable and precise.
2. Increased 10-inch operating screen plus simple and convenient interface make it easy to operate, reducing failure.
3. The more stable mechanical structure and two-way lock mode ensuring longitudinal zero deflection, can improve the stability of system greatly.
4. Hoaco knob speed-regulating technology-domestic initiative. Speed regulation and speed can be set freely. Acceleration and deceleration is more smooth, making sure the tension system fast and stable, thus to improve the stability of the whole system.
5. Single and dual asynchronous joint function-the highest stability and fitting precision, ensuring continuous production.
6. Set-length cutting function-domestic initiative, is suitable for set-length cutting of products, with no need of a cutting machine. On account of its high speed and high precision, the productivity can be boosted.
7. Dual backups inflation system-domestic initiative, ensure the continuity of production and reduce maintenance time.
8. Electronic eye(CCD) tracking system- the highest device performance in domestic, can help die cut graphite sheet.
Product Specification / Models
Model:HW2500C-8/16
Material form: coil type
The biggest feeding width (mm):250
The maximum operating speed:40m/min
Roll teeth knife pitch:1/8"
Maximum number of circular knife:120
Minimum number of circular knife:60
Working station quantity: 8
Accept feeding shaft quantity:16
Automatic tension control system:Yes
No material or material run out alarm:Yes
Tension maintaining function:Yes
Formula storage function:Yes
Automatic correction system:Yes
Dimensions (L*W*H mm):4080*2100*2330
Weight(T): 4.5
Power specification:AC380V

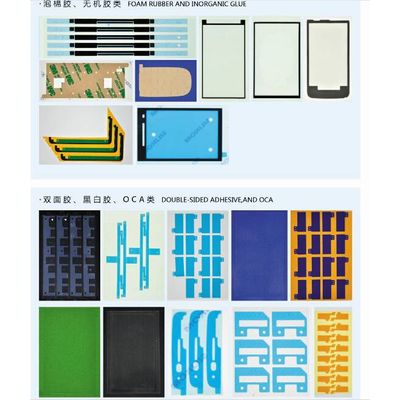

Application / Models
1.mobile phones,laptops,PDA,digital cameras and audio electronic products as well whose parts such as front and rear shell,windows,display,microphone,receiver,keyboard and battery.
2.Die cutting labels
3.Also applicated in health care,package printing,automotives electronics and daily necessities.
