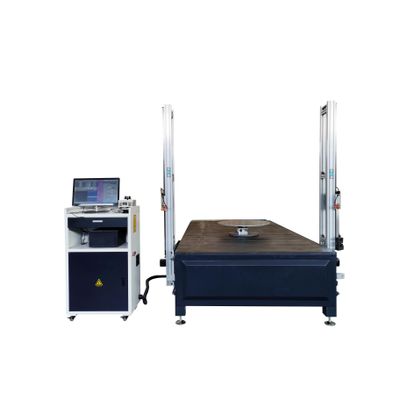

cnc eps foam 2d 3d styrofoam hot wire foam cutting machine cutter

Features:

1. This machine adopts SQUARE orbit, double rows and four columns ball blocks. Large

bearing capacity, running smoothly, high precision and long life.

2. Whole thick Square tube structure and not deformation, Steel structure and scientific

welding, not deformation overall.

3. Adopts highly flexible, resistant to bending cable. And import durable electronic

Components. The whole machine`s electronic design meets the European CE standard.

Separate control box with reliable security protection system.

4. Easy to learn mach3 control system, with computer, adopt Unique intelligent budget rules, full exert

motor potential, achieve constant speed machining, curves and linear synchronous, and

curve is more perfect.

5. High-speed drive stepper motor and drives, so let it constant and stable running.
6.

7. Model	WS1330 4 axis hot wire foam cutter with turn table for 3d cutting
   Working size	1300mm width*3000mm length *1300mm height
   Machine table	15-20mm polyester board
   Working speed	500-800mm/min max
   Rapid traveling speed	5000-8000mm/min max
   Cutting precision	+/-0.5mm
   Driving system	High speed stepper motor and driver
   Control system	Mach3 with computer
   Software	Caxacad, will be installed in computer
   Machine frame	Light structure
   Weight	260kgs
   Working power	110V 1phase 60HZ / 220V 1 phase 50HZ
