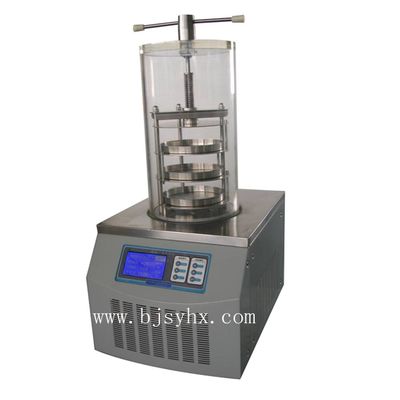

vacuum freeze dryer (LGJ-10)

LGJ-10 Freeze Dryer is suitable for freeze-drying experiment

in laboratory. It is bench top equipment.

Environment friendly international standard

LCD display drying curves, English interface,

Big opening of condenser , condenser has pre-freezing function

Danfoss compressor, good efficiency, low noise, long service life

Condenser and operation panel are all stainless steel

Drying Chamber with organic glass cap is safe and visible

Shelf and tray are stainless steel, tray spacing can be customized

Small volume , easy and convenient operation

Air-let-in valve with nitrogen is optional

Eutectic point test device is optional

Communication interface is optional

Cascade refrigeration is optional , applied for -80 centigrade device

Freeze drying area 0.08 m2

Condenser capacity 3-4 L /24h

Condenser temperature < -50centigrade (-80 centigrade optional )

Vacuum degree < 10 Pa

Material tray dia. 180mm, 3 layers

Bulk capacity 0.8 L, 10mm thickness

Vial capacity dia.12mm560 pcs

Vial capacity dia.16mm285 pcs

Vial capacity dia.22mm165 pcs

Style of press By hand

CoolingAir,ambient temperature no more than 25 centigrade

Power 220V, 50Hz

Dimension 565u00d7420u00d7(360+430) mm

Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc.
