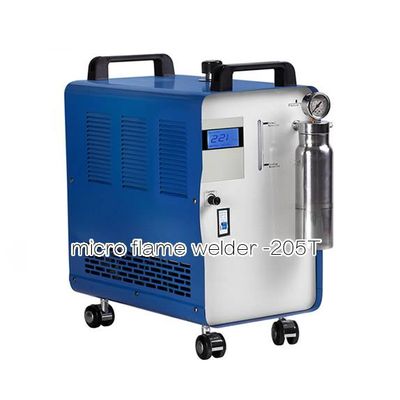

micro flame welder-205T (2016 newly )

2016 newly type of micro flame welder has been used the most advanced technology(Its electrolytic voltage is DC 24V, and electrolytic current is DC 13A,which reduces power supply's breakdown.



special features of micro flame welder

1.energy-saving: consume water and electricity; electrolysis water into hydrogen and oxygen gases; use hydrogen and oxygen as source of flame replacing LPG, propane,acetylene fuel,natural gas or other fuel.

2.environmental-friendly and safe: output of hydrogen oxygen flame burning is only water vapor with on smell or no pollution.

3.five safety elements: automatic air switch, non-return valve, auto-pressure release valve,flashback arrestor, flame torch with anti-flashback device.

4.gas production can be adjustable. ( through rotating the black knob in front outer shell.)

5.water-lacking alarm for feeding cell to inform operator to add water into the machine once waterline is lower than 30% of the sight tube.

6.external flashback arrestor can be disassemble,cleanable and reusable.

7.LCD screen shows total gas output per hour,and electrolytic current of each electrolytic cell circularly.

8.detachable electrolytic cells; broken electrolytic cell can be replaceable easily.



applications of micro flame welder

1.precise welding

In electronic industry, for welding enameled wires ( copper wires), flame welding circuit board, thermocouple and platinum resistor leading wires.

In medical industry,for denture welding, welding metal fitting and mending sand holes in dentistry, no carbon flame disinfection and glass seal

In laboratory, for welding of laboratory teaching,providing convenient,safe and clean hydrogen oxygen flame.

2.jewelry industry

Gold,silver,platinum,copper jewelries,accessories,ornaments,decorations melting,welding,and so on.

3. heating and sealing

glass or quartz glass tubes sealing ; ampule bottles sealing

4. acrylic/organic/perspex/plastic industry

ideal tool for polishing irregular surfaces,curved and tilted surfaces,edges,holes and inner corner surfaces of acrylic/organic/perspex/plastic sheets,signs,trophies and other art wares, and make these rough edges and hard to reach places much more clear and transparent.

5.other welding

instrument welding,small copper pipes welding,fishhook welding,storage battery tinplate welding

6.carbon cleaning and saving oil for cars and boats ... ...



tech data of micro flame welder-105T:

power input: AC 220Vu00b110% or AC 110Vu00b110%

frequency: 50HZ/60HZ

gas output: more than 100 L/H

electrolytic cell volume: 1.8 L

feeding cell volume: 1.2 L

max. water adding: 2.4 L

no.of electrolytic cell: 1

no.of feeding cell: 1

gross size: 44 cm u00d7 31 cm u00d7 54 cm

gross weight: 14 kg



tech data of micro flame welder-205T:

power input: AC 220Vu00b110% or AC 110Vu00b110%

frequency: 50HZ/60HZ

gas output: more than 200 L/H

electrolytic cell volume: 3.6 L

feeding cell volume: 1.5 L

max. water adding: 4.2 L

no.of electrolytic cell: 2

no.of feeding cell: 1

gross size: 53 cm u00d7 31 cm u00d7 54 cm

gross weight: 17 kg





tech data of micro flame welder-305T:

power input: AC 220Vu00b110% or AC 110Vu00b110%

frequency: 50HZ/60HZ

gas output: more than 300 L/H

electrolytic cell volume: 5.4 L

feeding cell volume: 1.8 L

max. water adding: 6.3 L

no.of electrolytic cell: 3

no.of feeding cell: 1

gross size: 65 cm u00d7 31 cm u00d7 54 cm

gross weight: 22 kg





tech data of micro flame welder-405T:

power input: AC 220Vu00b110% or AC 110Vu00b110%

frequency: 50HZ/60HZ

gas output: more than 400 L/H

electrolytic cell volume: 7.2 L

feeding cell volume: 2.2 L

max. water adding: 8.4 L

no.of electrolytic cell: 4

no.of feeding cell: 1

gross size: 77 cm u00d7 31 cm u00d7 54 cm

gross weight: 26 kg



tech data of micro flame welder-605T:

power

special features of micro flame welder

1.energy-saving: consume water and electricity; electrolysis water into hydrogen and oxygen gases; use hydrogen and oxygen as source of flame replacing LPG, propane,acetylene fuel,natural gas or other fuel.

2.environmental-friendly and safe: output of hydrogen oxygen flame burning is only water vapor with on smell or no pollution.

3.five safety elements: automatic air switch, non-return valve, auto-pressure release valve,flashback arrestor, flame torch with anti-flashback device.

4.gas production can be adjustable. ( through rotating the black knob in front outer shell.)

5.water-lacking alarm for feeding cell to inform operator to add water into the machine once waterline is lower than 30% of the sight tube.

6.external flashback arrestor can be disassemble,cleanable and reusable.

7.LCD screen shows total gas output per hour,and electrolytic current of each electrolytic cell circularly.

8.detachable electrolytic cells; broken electrolytic cell can be replaceable easily.

tech data of micro flame welder-105T:

power input: AC 220Vu00b110% or AC 110Vu00b110%

frequency: 50HZ/60HZ

gas output: more than 100 L/H

electrolytic cell volume: 1.8 L

feeding cell volume: 1.2 L

max. water adding: 2.4 L

no.of electrolytic cell: 1

no.of feeding cell: 1

gross size: 44 cm u00d7 31 cm u00d7 54 cm

gross weight: 14 kg



tech data of micro flame welder-205T:

power input: AC 220Vu00b110% or AC 110Vu00b110%

frequency: 50HZ/60HZ

gas output: more than 200 L/H

electrolytic cell volume: 3.6 L

feeding cell volume: 1.5 L

max. water adding: 4.2 L

no.of electrolytic cell: 2

no.of feeding cell: 1

gross size: 53 cm u00d7 31 cm u00d7 54 cm

gross weight: 17 kg





tech data of micro flame welder-305T:

power input: AC 220Vu00b110% or AC 110Vu00b110%

frequency: 50HZ/60HZ

gas output: more than 300 L/H

electrolytic cell volume: 5.4 L

feeding cell volume: 1.8 L

max. water adding: 6.3 L

no.of electrolytic cell: 3

no.of feeding cell: 1

gross size: 65 cm u00d7 31 cm u00d7 54 cm

gross weight: 22 kg





tech data of micro flame welder-405T:

power input: AC 220Vu00b110% or AC 110Vu00b110%

frequency: 50HZ/60HZ

gas output: more than 400 L/H

electrolytic cell volume: 7.2 L

feeding cell volume: 2.2 L

max. water adding: 8.4 L

no.of electrolytic cell: 4

no.of feeding cell: 1

gross size: 77 cm u00d7 31 cm u00d7 54 cm

gross weight: 26 kg



tech data of micro flame welder-605T:

power input: AC 220Vu00b110% or AC 110Vu00b110%

frequency: 50HZ/60HZ

gas output: more than 600 L/H

electrolytic cell volume: 10.8 L

feeding cell volume: 3.6L

max. water adding: 12.6 L

no.of electrolytic cell: 6

no.of feeding cell: 1

gross size: 107 cm u00d7 33 cm u00d7 56 cm

gross weight: 47 kg

applications of micro flame welder

1.precise welding

In electronic industry, for welding enameled wires ( copper wires), flame welding circuit board, thermocouple and platinum resistor leading wires.

In medical industry,for denture welding, welding metal fitting and mending sand holes in dentistry, no carbon flame disinfection and glass seal

In laboratory, for welding of laboratory teaching,providing convenient,safe and clean hydrogen oxygen flame.

2.jewelry industry

Gold,silver,platinum,copper jewelries,accessories,ornaments,decorations melting,welding,and so on.

3. heating and sealing

glass or quartz glass tubes sealing ; ampule bottles sealing

4. acrylic/organic/perspex/plastic industry

ideal tool for polishing irregular surfaces,curved and tilted surfaces,edges,holes and inner corner surfaces of acrylic/organic/perspex/plastic sheets,signs,trophies and other art wares, and make these rough edges and hard to reach places much more clear and transparent.

5.other welding

instrument welding,small copper pipes welding,fishhook welding,storage battery tinplate welding

6.carbon cleaning and saving oil for cars and boats ... ...
