High Voltage Testing Rig

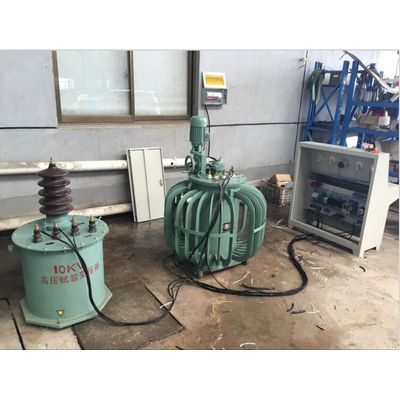

  Power frequency high voltage test rig is designed for finished product of low voltage cable. This equipment is made up of three parts: console, 50KVA induction voltage regulator, and transformer. The equipment has standard capacity of 50KVA and voltage of 5KV.  The operation is electrical controlled. If there are any crevasses on the tested cable, the high-voltage is automatic jump to zero, sound and light alarm are started, leakage protection maximally protect the safety of operator.

      Transformer
 The main technical parameters for transformer
 Rated Capacity: 50KVA, 100KVA, 150KVA, 200KVA
 Rated Input Voltage: 380V
 Rated Output Voltage: 0-5KV, 0-10KV, 0-15KV, 0-20KV, 0-25KV
      Induction Voltage Regulator
The induction voltage regulator provides testing transformer from zero to the rated value of AC input voltage, with functions of electric control, upper and lower limit, zero potential start.
 Main technical parameters:
 Rated Capacity: 50KVA, 100KVA, 150KVA, 200KVA       Rated Output Voltage: 0-600V
uf0b7 Rated Input Voltage: 380V          Installed capacity: 50KVA
uf0b7 Power supply:380V                  Maximum voltage:5KV
uf0b7 Test the longest in meters: 5000meters
      Console
Function & Features
1.When sample breakdown, it will automatically start alarm (light and sound) device.  High voltage cutting off will be delayed (0.1-1S, adjustable)
2.Voltage regulator in high voltage startup the zero potential.
3.Breakdown, over-current protection, high-voltage non-zero potential tripping operation, the voltage regulator automatically buck back to zero.
4.Disruptive test:when it arrived at the set voltage, the voltage value go
back to zero and automatically the power be cut off.
5.Digital display, voltage withstand time is adjustable.
6.High voltage output, current output, measurement accuracy to + 3%.
