Card punching machine

Product Description

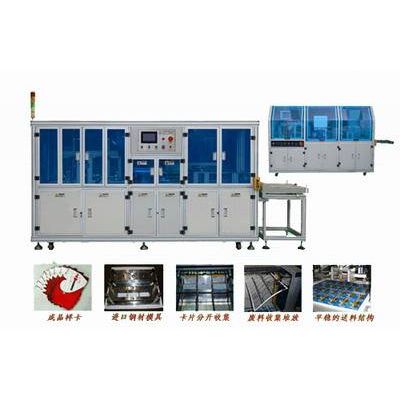

The Machine Is Operated On Touch Screen Human-Machine Friendly Interface And Controlled By PLC Automatically. High Sensitivity Optical Fiber Sensor Cooperating With Two Sets Of Stepping System To Achieve Lengthways Search Localization, And Then Double Servo-Motor Drive Imported No-Crevice Ball Screw To Achieve Transverse Localization And Material Feed,With High Speed And Precision(Can'T Be Affect By The Overall Dimension Of The Material).Use Servo Motor With Big Total Power As The Motivity Source,With Big Punching Power And High Speed(Can Be Adjusted),So The Punched Cards With Better Effect.

Product Feature

1,High Sensitivity Optical Fiber Sensor Cooperating With Imported No-Crevice Built-In Roller Screw Feed Material,The Position Parameter Of The Punching Spot Can Be Adjusted,With High Precision
2,Use Servo Motor With Big Total Power As The Motivity Source,With Lower Noise And High Speed,The Motivity Is Steady And The Punching Speed Can Be Adjusted As Need,When The Punched Cards With Different Thickness Will Have Better Effect.
3,Advanced Material Collate Structure And The Static Removing System Make The Machine Send The Material Stably.
4,Double Serve Motor Roller Ball Screw Sends The Material By Turns,With High Speed And Efficiency
5,Advanced Card Collecting System Can Send Off The Cards From Different Moulds And Collect The Cards Independently, There Is No Need To Collate The Punched Cards From Paste-Up Material ,With Fast And Reliable Card Collating.(Available For Punching The Paste-Up Material)
6,The Punched Scrap Is Collected By Manipulator Automatically
7,Controlled By PLC And Running Automatically,Double Cards And Checking For The Card Discharging Can Be Monitored,The Machine Will Alarm In Case Of Errors.

Product Specification / Models

LWACP300 High Speed Automatic Card Punching Machine
Power source
AC 380V/50 HZ
Available sheet
3X8,4X8,5X5.
Total power
7.5KW
Control method
PLC program+ servo system
Air source
6 kg/cm2(no water)
Operator
1 person
Air consumption
Approx 150L/min
Punching dimension
L3000×W1240×H1750mm
Weight
Approx. 1800Kg
Finished cards
Align at ISO CR-80-ISO7810 international standard
Punching precision
±0.10mm
Output
12000~18000 pcs /h (3X8)
16000~24000 pcs /h (4X8)
20000~30000 pcs /h (5X5)
