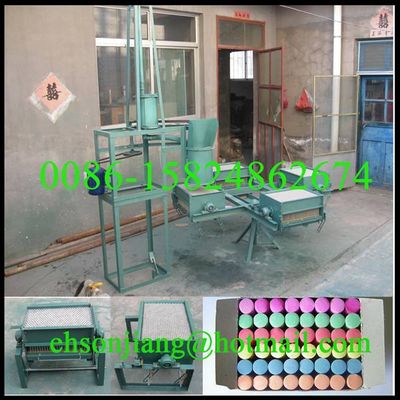

Best Quality Chalk Making Machine

Chalk Moulding Machine is suppied water automatically, mixing material by electric

mixer, filling mould, taking off mould, all the work are in a round assem-blyline. The

work efficiency is higher than the traditional machine. And it can save 30% material.

The rate of eligible product is 99%.

The chalk size and shape can be customized. This machine can make kinds of chalks:

such as chalk with fragrance, dustless chalk and color chalk.

The chalk that is made by this kind of machine has slick surface.

1. Lubricating the moulds with oil uniformly.

2. Supplying water: step on the supplying switch,then the water in the pail can be auto-

matic put into the agitation vat..

3. Pouring gypsum powders. Putting the quantitative gypsum powders into the agitation

vat and close the cover.

4. Mixing the material. Switch on the power switch and mix materials about 10-20 sec-

onds.

5. Filling the moulds. Open the switch in the bottom of the agitation vat and then make

the materials pour into the mould.

6. Pushing out the chalks. Turn the mould in reverse and put the tray into the mould,

then rotate the ejection structure to push-out the chalks.

Model:AS800-4

Capacity:12,000-24,000 pcs/h

Weight:400 kg

Volume:2.5 m3

Remarks: the size of the chalk: the diameter of two heads are 10mm and 8mm.

The length is 75mm.Or we can produce mold as your requirement.

Chalk dimensions: 10mm (big head)u00d78mm (small head)u00d775-105mm(length)

The model capacity can be as per customers' request



Chalk shape: round, rectangle, star or on customers' request
