explosion proof magnetic lock, explosion protect intrinsic safety magnetic lock

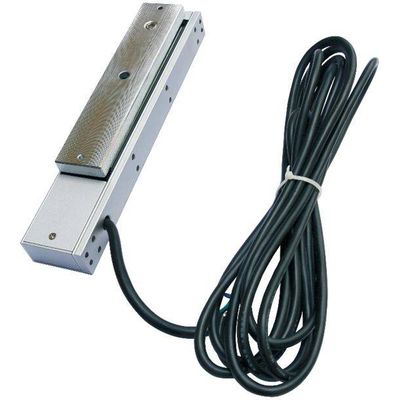

XY300 explosion proof magnetic lock is a kind of intrinsic safety electromagnetic lock that can be used in explosive gas or dust environment. It has some merits with simple structure, easy installation and maintenance, with out wear and tear etc. with longer life & higher reliability than the electric plug lock. When dangers happens, the lock will be released when power cuts off, easy for people to escape. Particularly applicable to petrochemical explosive gas field, and has very high security.

1. Way of opening door: power off and door open

2. Scope of application: fire door, wooden door, glass door, metal door

3. Suitable door type: single door/ double door

4. State inspection: inspectiong the status of door open or close

5. Waterproof design: suitable for using in outdoor environment

6. Standard suction: 240Kgf

7. Safety: suitable for using in hazardous area, with explosive gas or dust exists, in Zone 1 and Zone 2.

Input voltage: 12VDC

Maximum current: 410mA

Maximum power consumption: 4.8W

Explosion proof class: Ex[ib]inIIBT6

Applied for industries like petroleum, pharmaceutical, chemical, metallurgy, textile and others, with explosion proof performance, the magnetic lock could be used in the access control system within hazardous area in the above-mentioned industries.
