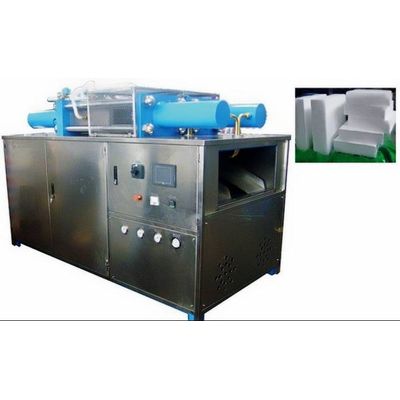

Dry Ice Block Making Machine (SIBJ-500-2)

Mainly for the production of high-density dry ice;

It is very suitable for liquid CO2 companies that are going to produce and sell the dry ice.

For food storage in airport, cooling and fresh transportation for sea food, or for the decoration in catering industry.

Advanced PLC automatically controlled system, optimization of the hydraulic system, accurate and graphical screen.

The location of the conveyor belt, facilitate the side-by-side arrangement of multiple machines.

The improved output percentage of the dry ice reduces the raw material consumption.



SI500-2 type double in block ice machine is actually two SI type-500-1 single,only the frame and fuel tank Shared,all the other parts to separate,each other is not affected.

Material

Liquid CO2



Dry ice dimensions

210 x 180 x 20~210 mm



Capacity

700 kg/h-1000 kg/h



Dry ice density

More than 1.45 g/cm3



Percentage of dry ice

more than 40%



Working pressure

16 MPa



Electric power

30 Kw



Capacity of hydraulic oil

200 L



Overall size

2650(L)x1320(W)x1600(H) mm



Total weight

2600 Kg

For food storage in airport, cooling and fresh transportation for sea food, or for the decoration in catering industry.
