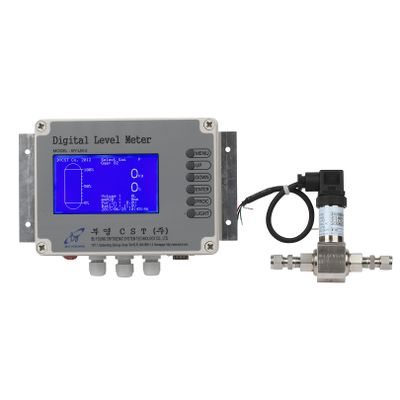

Digital Level Meter

Digital Level Meter
Model : BY-LM-2
Media criteria : L-CO2, L-N2, L-O2, L-Ar
Column Height : 0 ~ 20,000
Operating Pressure : 0 ~ 3.5MPa
Material Temperature Range : -196u00b0C ~ 40u00b0C
Voltage : 220Volt [Battery : 12Volt]
Size : 200 x 150 x 100m
LCD Size : 115 x 65mm
Connection : DIN 43650
Communication : 485 CABLE, WIFI
Printing Method : Serial Thermal Transfer printing


1) Weighting measurement function
: By hours minutes and second units , Displays the usage of liquid status and it can be used as storage tank and tank lorry attachment and portable measurement .


2) PC monitoring function
: Communications functions of Storage tank liquid usage and
real -time monitoring and the output from a PC , the exsting on-site verification process is not required .


3) Receipt output function
: Portable therma transfer printer can use the output value measuring of storage tank and tank lorry without visiting a long measuring place directly by the output as a receipt .


4) Alarm function
: When the liquid remaining of the storage tank is less than 10% , the alarm sound provides infomation that you can setting the a liquid supply time .


5) Diversity of power supply


6) Use the usual 220volt electric , in case of power outage , the built-in battery can take advantage of the battery is charging .

in addition built-in battery - operated and available for tank lorry using the car battery .
