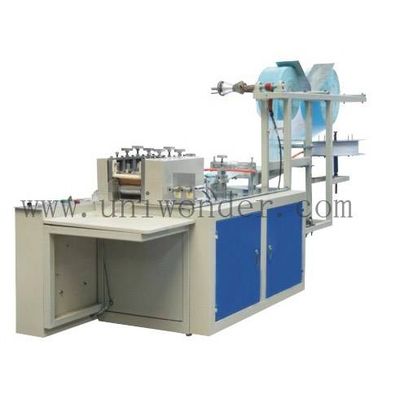

Automatic Non-woven Fabric Mask Making Machine

Introduction:

Our company developed non-woven mask slicer; the product applies to hospitals, research institutes and industrial dust. The machine is stainless steel structure, independent electrical control box, using ultrasonic fusion technology. Only one operation, from raw materials into, aluminum insert / cut, package and bag side edge fusion, forming fusion, forming cut to the finished product output, counting, collecting complete automation and control, the maximum production of 200 per minute.

Features:

1,Stability, performance, low failure rate.

2,Stainless steel construction, separate collection of electrical control box and finished table, machine real close, off a small plot.

3,All parts chrome plated surface, covering parts of stainless steel, beautiful and clean.

4,Single-phase power conversion, energy efficient.

5,Transmission system using belt, chain, gear combination.

6,Adjustable ultrasonic welding.

7,Changing a machine, the replacement of mold can produce various specifications of masks.

8,Electronic counting.

9,Discharge static treatment.

10,Automatic shutdown protection cloth off.

Main Technical Parameter:

Materialmelt-blown non-woven filter cloth carbon cloth reinforcement bridge of the nose

Non-woven Mask Specificationsone to produce multi-layer non-woven mask film, activated carbon respirator film, filter paper, gauze mask plate (filter paper inside and outside gauze); length 125 - 205mm, width 80 - 100mm (such as infant mask 125 u00d7 80mm; ordinary mask 175 u00d7 95mm and other models)

Production Speed0-200p/m, the thickness of the material, the best control 120-150p/m.

Rated Power3Kw

Rated Voltage220Vu00b15%

Machine Weight380KG

Overall Dimensions3200(L)u00d7750(W)u00d71380(H)mm
