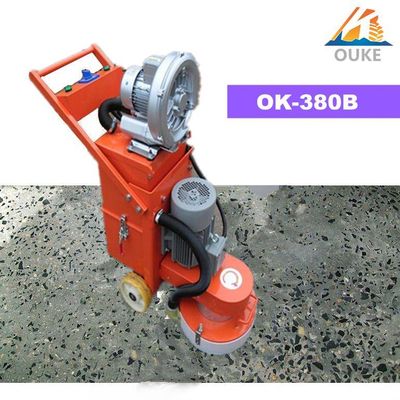

OK-380B wood floor low speed polisher,Brand new tool and cutter grinding machine for wholesales

JINING OKING is Shandong Province of China area only in the production of epoxy floor grinding machine manufacturers, my company production of floor grinding machine is divided OK-300B, OK-380B, OK-600C, OK-900C four models, meet the needs of different users.



1. Easily and safety for operating.

2. Low maintenance cost and long life time design.

3. High performance, more durable.

4. Best service.

Product use

1. Grinding of standard concrete foundation.

2. Grinding of hard concrete foundation.

3. Grinding of Epoxy resin coating.

4. Removal of old coating.

5. Concrete surface grinding wool processing.

6. Concrete concave convex and fragile layer smooth processing.

1 The machine ability outstanding reflected good treatment effect.

2 Original cutting tools can be for the removal of the old film.

3 Dust cleaner integrated, clean construction.

4 Can be free to replace the grinding head, supplies can be free configuration (diamond grinding head, remove the old epoxy grinding head, grinding wheel piece, sanding paper, etc.).

5 The main motor and the cleaner uses the separate switch control, easy to use.

6 This machine has the function of vacuum aspiration, high flexibility, high efficiency and simple operation! Is the best choice for epoxy constructing.

OK-300B

OK-380B

OK-600B

OK-900B

Use instructions of electric floor cleaning machine machine



1. Machine in the use of the machine to check the integrity of the machine, to ensure that the operation of the machine and electrical parts of the no moisture phenomenon, the operation control switch.

2. Install the grinding head: according to the construction and construction process to choose the match of the grinding head. Grinding head to properly installed. To avoid machine used in the process of grinding head from grinding head fixed parts caused by wounding and damaged goods phenomenon, using metal cutter head, must ensure the grinding head card into the disc in the middle. The use of screw connected to the polishing head, be sure to tighten the nut, choose Paste sand paper, sand paper must fit installation.

3. When installing the grinding head, the machine will tilt, support the rubber pad and the ground contact, the machine running switch to the closed position, press the emergency stop button and in the lock state.

4. Stop operation, press the stop button, close the switch, long time to stop the power switch.

Note of electric floor cleaning machine machine



The operator must be familiar with the general structure and performance of the equipment, and shall not exceed the performance of the equipment. Parts and the volume of the abrasive tool shall not exceed 90% of the volume of the hopper. After the power is switched on, of idling, should run smoothly, no abnormal noise. Otherwise, should stop check. The work-piece must be removed before the work-piece is ground to remove oil and dirt. In machining process must be based on the work-piece grinding conditions to add the amount of abrasive and control water. When the work is finished, cut off power, cleaning equipment, good equipment maintenance work. Before starting the safe operation, check the fastening screws, check the motor shaft and other rotation is flexible. Equipment in operation, found that the exception should be parking.
