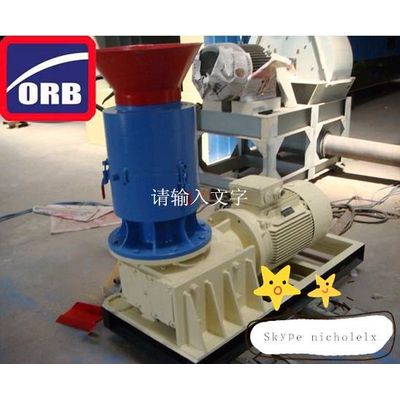

Flat Die Pellet Mill for organic manure fertilizer

1. It adopts pressing roller and the linear velocity of its ends is the same with the die one, therefore it's not appearing dislocation and friction, decreasing the resistance, reducing the kinetic energy loss, extending the life of the mold and reducing the production costs.u00a0u00a0

2. Pinch roller sets smoothly and increase the pressing of the district, increasing the production efficiency.

3. It adopts central screw rod to adjust the pressure, and the distance of mould can be long and short to ensure the effect of pressing, so can suit for different materials.

4. The models have a wide range of aperture dia 1.5-dia 20mm mold, adapted to different materials, to achieve the best efficiency.

5. It's adopt to motor or diesel engine driving. Low consumption, high output, easy to operate.

ModelOutput

(kgs/h)Power

(kw)pellet diameter

(mm)Weight

(T)Dimension

(mm)

ORB2-200F0.1-0.157.5-112-150.21150*380*800

ORB2-300F0.25-0.35302-150.81850*1150*1100

ORB3-350F0.3-0.4302-151.61800*850*1500

u00a0ORB3-450Fu00a00.4-0.5u00a045u00a02-15u00a02.4u00a02300*1100*1600

ORB3-550F0.5-0.75556-303.22600*1400*1820

Applicable scope:

Sawdust, rice husk, cotton stalk, cottonseed skins, weeds, crop stalks and other plant waste, low bonding, it is difficult to molding and granulation. It's also applying to low-temperature granulation. Such as bio-fertilizer, organic manure, fertilizer, etc.
