General Description

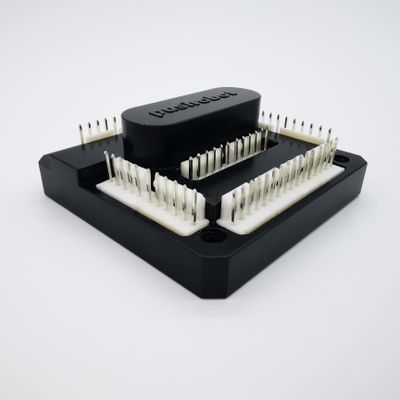

PMC005xx is a micro 5-axis stepper motor drive controller, which can be controlled by USB interface or RS485 network. It has the characteristics of small size, strong driving force and low calorific value. PMC005xx stepper motor controller can provide parallel control for five-axis stepper motor, with 0.1-2.5A continuous adjustable peak current per axis, a maximum of 32 subdivisions, and built-in acceleration and deceleration, sensor control, and abnormal protection functions. It is especially suitable for compact multi-axis automatic instrument and equipment.

Features

9-36V wide range single voltage power supply

Maximum five-axis stepper motor parallel control, or four-axis stepper motor + two-axis DC brush control

The output current of each axis is 0.1A ~ 2.5A, which can be adjusted continuously.

Trapezoidal acceleration and deceleration, which can be adjusted by instruction

Support 0/2/4/8/16/32 microstepping

Support 2 limit switches per axis

Optional 2 solenoid valve control with automatic energy saving

Optional support for 2 axis DC brushless motor control with speed regulation function

TSD, UVLO and OCP protection functions

Support 2-axis stepper motor closed loop control (optional)

Support stored procedures offline or online execution
