General Description

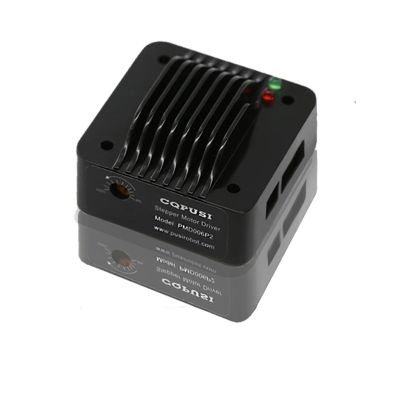

PMD006xx is a kind of micro integrated stepper motor microstepping driver, which can be directly installed in the rear 42/57/86 etc series stepper motor, and which has the advantages of small size, strong driving force, and low heat and so on. PMD006xx stepping motor driver can provide 0~5A continuous adjustable peak current, maximum 128 microstepping, free current which can be adjusted continuously.

Features

• Wide range of 9-48V single voltage supply. (Refer to the model specification)
• Output current 0.1A ~ 6A, which can be adjusted continuously.
• Support common anode, common cathode, differential, double pulse, pulse direction, and other input modes.
• Support 0/2/4/8/16/32/64/128 microstepping accuracy. (Refer to the model specification)
• Support 4/6/8 lines of 2 phase stepper motor.
• The highest frequency of input pulse can reach 250 KHz.
• TSD,UVLO,OCP protection.
• The idle current is 0- The current of full load can be adjusted continuously.
• Support full torque mode of torque enhancement.
