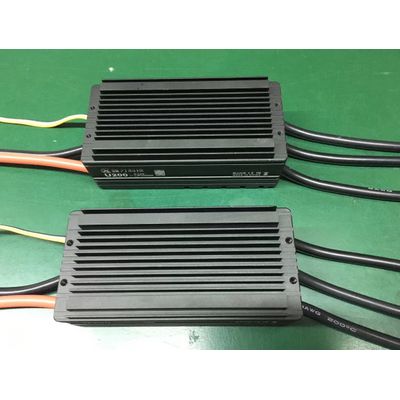

Model No.: U100;
Current: Rated 100A, 180A maximum continuous 3s;
Cells of Lipo: 12s(5-14s);
Communication interface: PWM signal, 3.3V or 5V compatible;
Compatible Signal Frequency: 50-500Hz;
Accelerator Pulse Width: default 1100us-1940us, support accelerator adjustment;
Output signals: Error, speed;
Protection functions: Accelerating, Stalling, OVP, OCP, SCP(phase-phase), OTP;
Working temperature: -20 ~ 65u2103;
Protection Grade: IP67, sealed;
Electric wires of input and output: 12 AWG;
Size: 82*42*24mm;
Weight: 140g (no wires);
general applying cells of Lipo: 4s,5s,6s,12s,14s;
more current: 1A-10A, 20A 40A 60A 80A 100A 120A 150A 200A 300A;
more voltage: 12V 24V 36V 48V 110V;
more special ESCs can be customized;
application area:
1. UAV, quadcopter drones, rc airplanes, electric helicopters, electric multicopters, electric heavy lift aircrafts, heavy lift apricultural quadcopters,
electric heavy lift vehicles.
2. DPV, USV, electric scooters, underwater dive scooters, dive propulsion vessels, electronic hydrofoil surfboards, e-Foilers, electric surfing scooters,
unmanned watercrafts, remote control intelligent life buoy, electric surboards, electric heaby lift watercrafts, electric boats.
3. Automotive fuel pumps, auto water pumps, urea pumps, pre-filter, fan heaters.
4. Medical power tools, surgical bone drillers, draw saw.
5. Industrial power tools, vibrating ros, blowers, polishers;
6. Electric water well pumps systems, solar water pumps, spray pumps, electric well pumps;
price based on ordered quantities.
