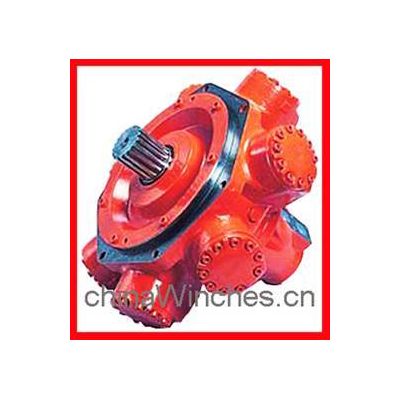

HMC080, HMC100, HMC125, HMC200, HMC270, HMC325 Kawasaki Staffa HMC Motor

our hydraulic piston motor, for the Staffa motor of HMC series, range for the model HMC080, HMC100, HMC125, HMC200, HMC270, HMC325. The HMC series dual displacement models have two pre-set displacements which can be chosen from a wide range to suit specific application requirements. The displacements are hydraulically selected by a directional control valve which can be remote from, or mounted directly on the motor. Displacements change with ease when the motor is running.



Key Product Features:

1 Interchangeable with original kawasaki Staffa hydraulic piston motor of same series.

2 Consistent, controlled acceleration of loads with smooth, steady, low speed operation.

3 Moving parts are immersed in hydraulic fluid, so Staffa motors do not require periodic lubrication.

4 Save money by increasing usable drive power and reducing drive train maintenance.

5 The only fully hydrostatically balanced design in the industry.

6 Less wear and superior starting torque because there is minimal metal-to-metal contact within the motor.



Model

Displacement



(cc/rev.)





Unit torque



(Nm/ Mpa)





Rated power



(KW)

Max. power



(KW)

Rated pressure



(Mpa)

Displacement options



(cc/rev)



HMC080

High: 1580

225

102

127

23

1600, 1500, 1400, 1300, 1200, 1100, 1000, 900, 800



Low: 592

78

53

66

23

1100, 1000, 800, 700, 600, 500, 400, 300, 200, 100







HMC125

High: 2066

293

105

132

23

2100, 2000, 1800, 1600



Low: 839

100

47

59

23

1600, 1500, 1300, 1200, 1200, 1000, 830, 670, 510, 350, 190, 110







HMC200

High: 3080

447

115

145

23

3100, 2900, 2800, 2600, 2400, 2300, 2100, 2000, 1800, 1600



Low: 1487

206

97

121

23

2300, 2100, 2000, 1800, 1600, 1500, 1300, 1200, 1000, 830, 670, 510, 350, 190, 110







HMC270

High: 4597

657

123

153

23

4600, 4100, 3600, 3300



Low: 1362

168

48

81

23

3300, 3000, 2600, 2300, 1900, 1600, 1400, 970, 680, 340, 170







HMC325

High: 5335

763

123

153

23

5300, 5100, 4900



Low: 1646

210

59

91

23

3600, 3300, 3000, 2600, 2300, 1900, 1600, 1500, 1400



HMC series

High: Disp. (cc/r)800~5300. Rated torque(Nm): 2400~17500. Max.speed(r/m):90~450. Rated power(KW):92~123



Low: Disp. (cc/r)100~3600. Rated torque(Nm): 0~11800. Max.speed(r/m):135~900. Rated power(KW):0~104
