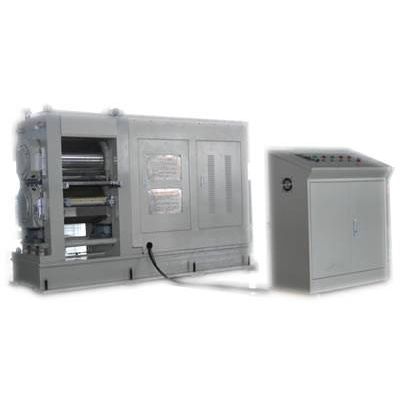

calender machine for battery making & researching

Features:

1. Single motor drives the helical gear reducer (hard tooth face) through gears. PLC and touch screen are adopted for control system (suitable for roll clearance adjusting by servo motor) or PLC and control panel (suitable for roll clearance adjusting by ratchet handle).

2. Compressing: by air-liquid booster pump and underneath type oil cylinder;

3. Roll clearance adjusting: automatically adjusted by servo motor driving middle slide wedge or manually adjusted by ratchet handle driving middle slide wedge.

4. Top roll and bottom roll are horizontally positioned. Square-shape casting stands. Special bearing for high precision mills and bearing clearance eliminating device.

5. Unwinder, rewinder, dust collecting for trimming process, damping device are designed for continuous rolling process. The roll self-unloader is easy operated for roll changing.

6. Options for continuous rolling process: S roll preheating device, thickness tester, jointing platform.

LDHY400-N45

The rolling mills and continuous production line developed by Naknor are widely used in the electrode rolling for lithium-ion battery, polymer battery, Ni-MH battery and super capacitor as well as rolling of non-ferrous metal, mainly for the industry of new energy and IT as well as non-ferrous industry.
